DESCRIPTION

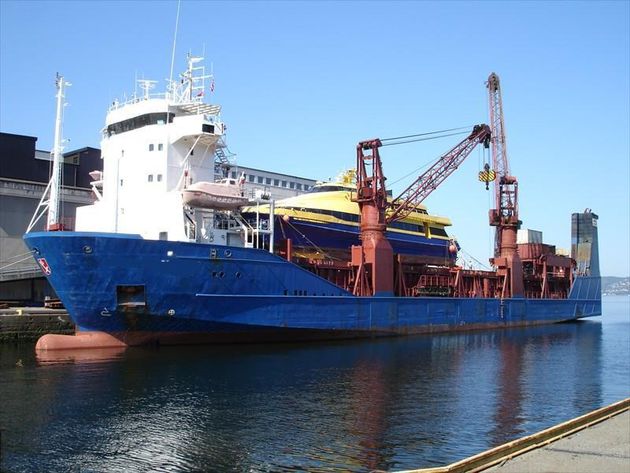

This is a 333’ 5,078 mt DWT Geared RoRo Cargo Ship built in Germany in 1996. It is Bureau Veritas Class and in active service. There are 2 x 60 mt cranes combinable for 110 mt Safe Working Load as well as a stern loading ramp. It can carry up to 501 TEU containers or 289 @ 14 mt basis. The main engine is a MAB B& W diesel and there is a bowthruster. The ship is fully operational.


GENERAL INFO
Type: Geared RORo Cargo Ship
Year Built: 1996
Country Built: Germany
LOA: 101.2 m/333 ft
Beam: 18.6 m/61.0 ft
Summer Draft: 6.62 m/21 ft 9 in
Air Draft: 37.05 m/121 ft 7 in
DWT Summer Draft:5,078 mt
Gross Tonnage: 5,752 mt
Net Tonnage: 2,579 mt
Class: Bureau Veritas
Registry: Panama

TECHNICAL
Main Engine: MAN B& W
Model: 12V 32/40 750 rpm
Power: 5,280 KW/7,075 HP
Fuel: IF 180 CST
Propulsion: 1 x CPP 185 rpm
Speed: 16 knots
Bow Thruster: 1 x 350 KW
Auxiliary Engines: 2 x Volvo Penta TMAD 162C
Consumption: .9 mt/day
1.5 mt/day with cranes working
Shaft Generator: 1 x 704 KVA
Frequency: 60 hz

MAIN LOADING DETAILS
Cranes: 2 x Libheur, port side mounted
Model: LBS 3100
SWL/Outreach: 60 mt @ 28 m
SWL Combinable: Up to 110 mts
Stern Ramp Dims: 7.80 m x 5.5 m
Stern Ramp SWL: 300 mt max load

CAPACITIES
Upper Deck: 70.22 m x 15.6 m
Main Deck: 81.0 m x 15.6 m x 5.5 m
Lower Deck: 37.9 m x 14.85 m x 4.67 m
Hold Capacity: 9,420 m3/330,000 ft3
Tween Deck Loads: Hold 1/Hold 2: 3.5 mt/m2
Lower Dck/Tank Top:10.0 m3/m2
# Containers Hold: 210
# Containers Deck: 291
Total Containers: 501
Containers @14 mt: 289

Stack Weight Hatch: TEU 50 mt, FEU 65 mt
Stack Weight Hold: TEU 96 mt, FEU 125 mt

DESCRIPTION
This is a 333’ 5,078 mt DWT Geared RoRo Cargo Ship built in Germany in 1996. It is Bureau Veritas Class and in active service. There are 2 x 60 mt cranes combinable for 110 mt Safe Working Load as well as a stern loading ramp. It can carry up to 501 TEU containers or 289 @ 14 mt basis. The main engine is a MAB B& W diesel and there is a bow thruster. The ship is fully operational.

Disclaimer:

The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
