GENERAL INFORMATION

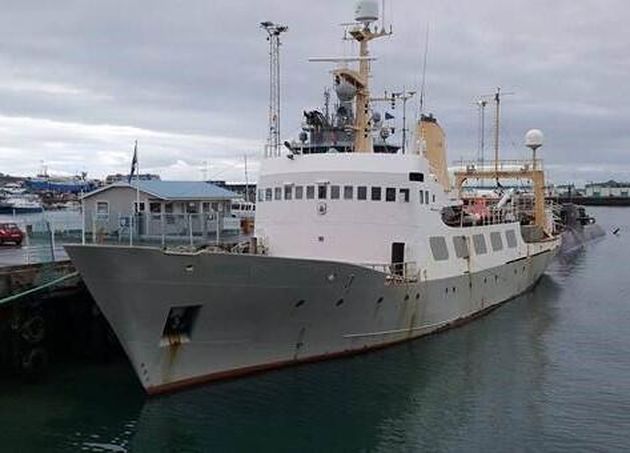

This is a specially equipped research vessel built in 1970 in Germany. It is Ice Class and is in active service. The vessel was built as a general research vessel, including fishery and oceanographic research. The propulsion system is of diesel electric type to obtain a low noise level.

In 2003, the vessel had a major overhaul which included basically replacement of all three diesel engines, with new power management system, renewal of the hydraulic system, renewal of insulation, paneling, furniture and fixtures in the mess room, galley, day room, laboratory, wet laboratory and wheelhouse.

The ship is well suited for a variety of multi-function roles including but not limited to support, guard, research and oceanography, and fishery patrol. It is also a good candidate for conversion to an expedition yacht or expedition vessel. There is room to increase accommodations with additional cabins and berths.

FEATURES
Ice Class
Oceanographic Gear
Diesel Electric Propulsion 2003
Multiple Dry & Wet Labs Acoustic Lab
Large Processing Area
Stern Ramp
Deck Crane 14 Mt
Interior Refit 2003
21 Cabins For 29+ Crew/Personnel Large Fitness Room

Vessel Type Multi Purpose Support/Research Vessel
Building Year 1970 in Germany
Major Rebuild 2003/ new engines, generators & machinery and interior
spaces
Flag Norway
Classification DNV (GL) X100 A5 E1 ex Fishery Research vessel (Ice
Class equal to Finnish Ice Class C)
Next SS 2027
LOA 55.87 m/183 ft
LPP 49.00 m/163 ft 9 in
Beam Molded 10.60 m/34 ft 9 in
Max Draft 4.40 m/14 ft 5 in
Displacement 1,378 mt @ 4.4 m draft

Main Engines 3 x Deutz AG Werk Mannheim TBD 616 V12 585 kW/784 HP @ 1500 rpm/each 400 V/230 V @ 50 hz
Propulsion 2 x 515 kW @440 V, 200 RPM air cooled, make AEG
Bow Thruster Retractable 360° Bow Thruster Electrically Driven, 130 kW

DECK & OCEANOGRAPHIC GEAR
The vessel is equipped with numerous winches for towing and scientific purposes. There are two main hydraulic systems in the vessel, a low-pressure system for the main trawl winches and a high-pressure system for the auxiliary and scientific winches. The vessel has a stern ramp for operations of bottom and pelagic trawl gear, a fish receiving bin and a wet fish laboratory in front of the fish bin on the main deck. See our detailed listing for full deck equipment specs.

ELECTRONIC EQUIPMENT
The vessel is equipped with basic marine research and oceanographic equipment and is considered viable for silent ship operations. The main electronic equipment is
Sonar 1 x Simrad APC-10 Sonar
Echosounder 1 x EK-60 echosounder
GPS Compasses 2 x Furuno GPS compasses
TimeZero Computer 2 units (without license)
Olex Nav Computer 1 unit (without license)
Wind Speed Instrument 1
Seawater Temp. Guage 1
Radar 1 x Furuno FAR-2218 X-Band
Radar 1 x Furuno FAR-2137 S- Band
Navtex 1 x Furuno Navtex NX-700
GPS 1 x Furuno GPS GP-170
GPS 1 x Furuno GPS GP-33
Auto Pilot 1 x Simrad Autopilot AP-70
GMDSS Receivers Yes
VHF Handheld 3 x Sailor.
Marport Receivers 1 x (no sensors)

ACCOMMODATIONS
Single Cabins 13
Double Cabins 8
Mess Room
Day Room
Galley
Food & Freezer Storage
Large Dry Lab Areas
Wet Lab
Acoustic Center
Large Processing Area
Fitness Center

Disclaimer:

The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
