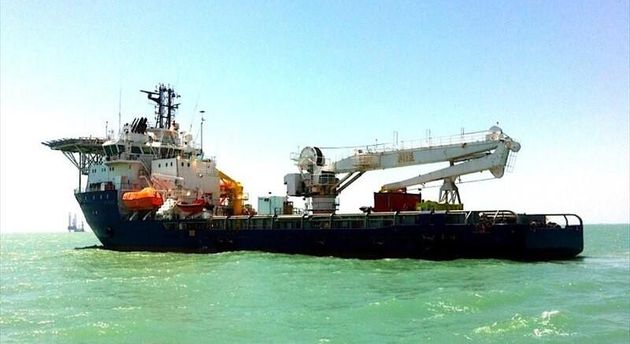

This is a 303’ DP2 Subsea Maintenance Support Vessel built in Norway in 2001. It is DNV Class. It has a 100 mt Subsea Crane, Moon Pool, Heli-deck, 20 mt ROV Crane full supply capabilities, and 2,600 mt deck cargo capacity. The ship was dry docked 3rd quarter 2025.

GENERAL INFORMATION
Vessel Type MSV, Maintenance Support Vessel
Year Built 2001
Country Built Norway
Design UT 745
Class DNV
Class Notation E DNV-GL +1A1, DK(+), DYNPOS (AUTR), EO, HELDK (H,S)
, HL (2.8), OILREC SF Methanol certification to be re-validated
Class prior use

DIMENSIONS
Length overall 92.40 m
Length overall 97.8 M (with helideck)
Breadth 8.80 m/28 ft 10 in
Breadth/helideck 23.00 m
Depth main Deck 7.60 m
Max Draft 6.20 m
Deadweight 3,835 mt (summer)
GRT 3,992 mt
NRT 1,306 mt

MACHINERY
Propulsion 6,250 bhp - 2 x 2300 kw @ 195 rpm, ABB Azipods 5 pull
Main Engines 4 x Bergen engines KRGB-9, 1990 kw each @ 900 rpm
Bow thrusters 2 x Ulstein 250 TV tunnel thrusters, 883 kw each
1 x Ulstein retractable Azimuth thruster, 883 kw
Main Generator 4 x AMG 630 M8, 690 V, 2363 kVA, 60Hz
Emerg. Generator 2 x Scania DI 14, 350 kw @ 1800 rpm
1 x Stamford Gen,.HGM 534 C1, 690 v, 438 kVA
Fresh Wtr. Maker 2 x 25 m3 / day, seawater desalination with reverse osmosis
Oily Wtr. Separator 1 m3 / hr, Heli-Sep 1000
Sewage Treatment 1 x 10.5 m3 / day, AquaMar Gmbh
Roll Damping Syst. 1 x Passive stabilizing system consisting of 3 tanks

PERFORMANCE
Max Speed 11 knots
Service Speed 9.5 knots
Consumption Maximum speed - 20 m3/day
Service speed - 15 m3/day
DP operations - (calm weather) 7 m3/day
At port - 2.5 m3/day on main generator or 1 m3/day on harbour

DP SYSTEM
Type/Make Reference systems DP Class II Kongsberg K-Pos DP21
For more detailed information on the DP System see our full
listing, available on request
HELIDECK
Capacity Super Puma type
Diameter 20 m
Max Weight 9.3 mt
Construction Aluminum
Monitoring System SEC-REC HMS
Motion System SMC 1MU108

DECK CRANES
Offshore Subsea 1 x Model 1 x TTS Norlift - GPCFO 2500 - 10040
Lifting capacity 1 fall - SWL 50 t @ 6-9 m / 1 fall - SWL 18 t @
6-40 m 2 fall - SWL 100 t @ 6-09 m / 2 fall - SWL 10 t @ 6-
38.5 m Maximum water depth Single fall (50 t) - 1500 m
Double fall (100 t) - 750 m Hoisting speed with working radius
Single fall light load 70 m / min, full load 25 m / min, Double fall
light load 35 m / min, full load 12.5 m / min Anti-Heeling
System 2 x PG - Bornemann VHC 180, 2-85, Capacity
: 250 m3 / hr @ 2 bar Personnel lift TTS 100 t, crane only 4%
winch capacity (max 2 t including equipment)

Stores Crane 1 x HMC Knuckle jib 1077, SWL 2 t @ 12 m (portside)
ROV Crane 1 x HMC Knuckle jib 1610SWL 20 t @ 9 m SWL 15 t @ 12 m
(stbd side)
Stores Crane 1 HMC Knuckle jib 1077, SWL 2 t @ 12 m (portside)

DECK MACHINERY AND EQUIPMENT
Tugger Winches 2 x 10 t @ 15 m / min, make: Brattvaag AKM 4110SWL 10 t
Anchor Windlass 1 x 45 bar pressure for 46 mm (dia) chain, make: Rolls Royce
Capstan 2 x Br. Rogne HP
Anchors 2 x 3,300 kg Stockless Bower anchors
Anchor Chains 495 m x Stud-link chain cable, (NV, K3, 46 mm)
Air Supply 5 outlets for working air on deck
Air Capacity 125 m3 / hr @ 8 bar

TANK CAPACITY AND TRANSFER RATES
For detailed information on the Tank Capacity and Transfer Rates, see our full listing, available on request

NAVIGATION & COMMUNICATION
For detailed information on the Navigation and Communication Equipment see our full listing, available on request

FIRE FIGHTING & SAFETY EQUIPMENT
For detailed information on the Fire Fighting and Safety Equipment see our full listing, available on request

ACCOMMODATION
1 Man Cabins 11 = 11 berths
2 Man Cabins 17 = 34 berths
3 Man Cabins 1 = 3 berths
4 Man Cabins 21 = 84 berths
6 Man Cabins 2 = 12 berths
Hospital 1 = 2 berths
Total 144 berths
All cabins are air conditioned and well equipped with WC and shower.
Mess Room
Day Room
Gym
Reception
Conference Room
Laundry
