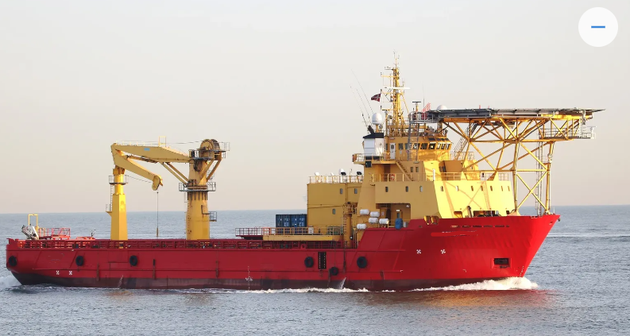

This 286’ DP2 Ice Class Multipurpose Platform Supply Vessel built in 1991 with major refits and upgrades in 2000, 2002 and 2013. It has a proven track record in Oil & Gas and Offshore Wind industry designed for Subsea, ROV & Survey operations, Accommodation, Personnel and Cargo transfers.

KEY ELEMENTS:
Dynamic Position (DP-2 AUTRA)
Ice Class C Polar code,
Removable Mezzanine Deck
Helideck
Deck for Heavy Cargo
Accommodation for 50
Crane (lifting capacity 20 mt),

GENERAL
Flag: Danish
Built: 1991, upgraded 2000, 2002 and 2013
Class: DNV
Class Notations: 1A1 Supply Vessel DYNPOS(AUTR) E0 HELDK Ice(C)
SF

PRINCIPLE DIMENSIONS
Length Overall: 87.10 m/ 285 ft 9 in
Length Between Perp: 74.3 m/243 ft 9 in
Beam: 17.5 m/ 41.0 ft
Max Draft: 6.2 m/20 ft 4 in

Net Tonnage: 983 mt
Gross Tonnage: 3,000 mt
Deadweight: 3,618 mt

DP SYSTEM
Classification: DYNPOS (AUTR)
Type: MT Bridgemate DP2
References: 2 x Veripos LD5 DGPS
1 x Kongsberg HiPap 500
1 x CyScan
2 x Windsensors

DECK CRANE
Crane: Lifting capacity 20t / Outreach max. 20 m.

MACHINERY & PROPULSION
Main Engines: 2 x Ulstein B
Total Power: 4,860 KW/6,512 HP
Bow Thrusters: 2 x Ulstein CPP, each 736 kw/986 HP
Stern Thrusters: 2 x Ulstein CPP, each 590 KW/790 HP
Shaft Generators: 2 x Generators, each 2.300 KW
Aux. Generators: 2 x Generators, each 450 KW

PERFORMANCES
Fuel Consumption:
Economic Speed: 11 knots 14.0 mt/24 hr
Port/at Anchor: 1.5 mt/24 hr
DP Station Keeping: 5.4 mt/24 hr
Full Speed: 12 knots 19 mt/24 hr

WALK TO WORK SYSTEM:
Type: Amplemann AO6-XL
Range: 26 m
Elevation: -17o to +43 o

FAST RESCUE CRAFT
Type: Norsafe 6,55 m
Engine: Volvo Penta AMD 31p
Power: 170 KW/228 HP

ACCOMMODATION
Charter Req.Class: SPS
Cabins for Charterers: 2 x Single Berth
24 x Double Berth
Total Bunks/Charters: 50
Offices for Charters: 4
Gyms: Yes
Changing Rooms: Yes
Hospital: Yes

CARGO CAPACITIES
Deck Cargo: 2.380 mt
Deck Strength: 5.0 mt/m2
Fuel Oil: 817.7 m3
Discharge Rate: + 250 m3/hr
Fresh Water: 1.235 m3
Discharge Rate: +250 m3/hr
Mud: 765 m3
Discharge Rate: 2 x 75 m3/hr
Brine: 974 m3
Discharge Rate: 2 x 31 m3/min

COMMUNICATION EQUIPMENT
GMDSS: Area: A1 + A2 + A3
VHF: 2 x Sailor VHF G248
UHF: 6 x Motorola
Satellite: V-Sat
Mobile Phone: GSM Sat
TV: Sea Tel

NAVIGATIONAL EQUIPMENT
Radar: 3 x Furuno FAR 2117 Radars
1 x Furuno FR 2137 Radar
ECDIS: Transas ECDIS NS4000
Gyro: 2 x Simrad Gryro
1 x Anschu tz Digital Gyro STD 22
Auto Pilot: 1 x Anschu tz Pilotstar D
Echo Sounder: 1 x Skipper GPS 100
GPS: 1 x Furuno GP 150 GPS
1 x Fugro Seastar 9200-G2 GPS
