COMMENTS

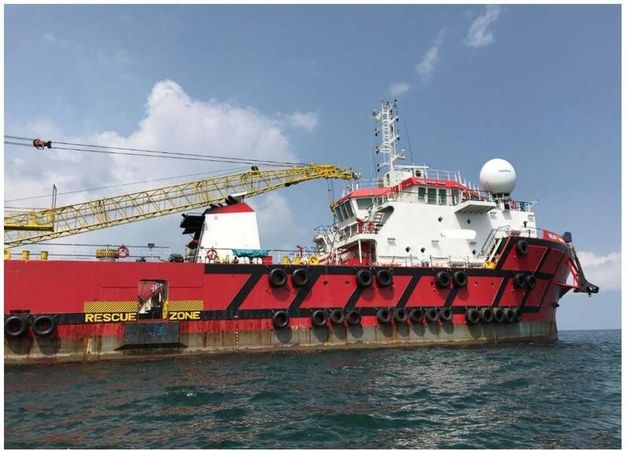

This is a 246' Well Stimulation, Accommodation, Maintenance Support Vessel built in 2006. It has a 4-point mooring system, 27 mt deck crane and has 1333 berths. The ship is currently laid up and will need dry dock and related work for fresh certificates. It is available at a very attractive price.

GENERAL INFORMATION
Type Offshore Maintenance Vessel
Year Built 2006
Class Bureau Veritas
Class notation Class 1 +HULL + MACH Unrestricted Navigation
Berths 133

DIMENSIONS
LOA 75 m/246 ft 1 in
LWL 72.2 m/236 ft 10 in
Beam 20.0 m/65 ft 7 in
Design Draft 5.0 m/16 ft 5 in
Deadweight 5,100 mt
GRT 3,047 mt

MACHINERY
Main Engines 2 x Caterpillar CAT 3516B, 2,100 HP each @1,800 rpms
Total Power 4,200 HP
Speed 12.0 kts at MCR
Endurance 22 days at MCR
Gearboxes 2 x Twin Disc Marine Reduction 5.04:1
Propulsion 2 x FPP, 2.1 m diam., Kaplan Type
Generators 3 x 430 kw, 415 V, 3 PH/50 VTA 28D (M)
Emergency Gen. 1 x 90 kw, Cummins 6 CT
Air Compressors 2 x 14.5 m3/hr x 30 BAR
Steering Gears 2 x 10 tm
Bow Thruster 1 x 10.0 mt, CPP

MOORING & LIFTING EQUIPMENT
Anchors 2 x Stockless Bower Anchors, 2,640 kg
Chain Cables 2 x 467.5 m x 46 mm (Grade 2)
Mooring Lines 2 x 220 ml, 44 mt
Anchor Windlass 4 x Single Drum
Mooring Winch 2 x sets Hydraulic
Vertical capstans 2 x 10.0 mt @ 10 m/min
Tugger Winches
4 Pt. Mooring Syst. 4 x Delta Anchors (4,000 kg)
Offshore Crane 1 x Pedestal/Lattice Boom Type Marine Crane
27 mt @ 14.0 m
16.3 mt @ 22.0 m
5.2 mt @41.2 m
@ 5 deg list angle, @ SWH_ 1.00 m

CARGO CAPACITY
Deck Area 600.0 m2
Deck Cargo 5,100 mt
Main Deck Strength 10.0 mt/m2
Lower Forepk. Deck 5.0 MT/M2
