COMMENTS

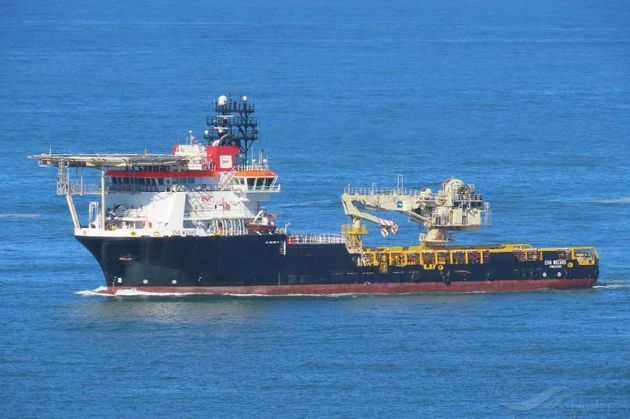

This is a 287’ DP2 MPSV built in China in 2011. It is Bureau Veritas Class with current certificates. It has a 65 mt Man Riding AHC Knuckle Offshore Crane, a forward mounted helideck, 928 m2 clear deck space and 60 berths. Its DP2 AUTR System combined with HIPAP System provides pinpoint positioning. The ship is in active mode with next dry dock due in July 2027.

GENERAL INFORMATION
Flag Singapore
Year Built 2011
Class DNV
Class Notation DNV +1A1 BIS CLEAN COMF(C-3, V-3) DK(+) DYNPOS(AUTR)
EO HELDK HL(2.8) OILREC SF TMON with Intact & Damage
Stability According to IMO Resolution A.749(18) MSC.235(82)

DIMENSIONS
LOA 87.38 m/286 ft 9 in
LBP 80.369 m/263 ft 8 in
Beam Overall 19.0 m/62 ft 4 in
Draft Max 6.55 m/21 ft 6 in
Deadweight 4,683 mt
Gross Tonnage4,801 mt
Net Tonnage 1,441 mt

MACHINERY & PROPULSION
Main Engines 2 x Wartsila Diesel Engines, 3,000 KW/4,021 BHP each
Generators 2 x 320 KW Diesel Generators, 440V, 3 Phase, 60 hz
Emergency Gen. 1 x 250 KW Diesel Generator/ harbor mode
Shaft Generators 2 x 2,000 KW
Bow Thruster 2 x Brunvoll, Transverse Tunnel Thrusters, 830 KW/1,1,220 HP
Stern Thruster 2 x Brunvoll, Transverse Tunnel Thrusters, 830 KW/1,1,220 HP
Water Maker 2 x 15 mt/24 hr R.O. Type

DECK CRANES
Subsea Crane 1 x 70MT TTS Norway Crane De-rated to SWL 65MT (2,000m
hook travel).Currently fitted with 2,400m main hoist wire; SWL
65MT (2,300m hook travel) Main Hoist:
- 65MT @ 11m, - 24.4MT @ 25m, - 2,300m hook travel
Active Heave Compensation: 65MT @ +/- 3m
Auxiliary Hoist: - 10MT @ 25m - 400m hook travel - Man-
Riding - 0-50m/min hook speed @10MT
Auxiliary Crane 1 x 5 mt @ 15 m, fixed boom

DECK & MOORING EQUIPMENT

Anchor Windlass 2 x 16 mt @ 12.7 n/min for chain
20 mt @10 m/min (low speed)
5mt @ 33 m/min (high speed)
Anchors 2 x Anchors stowed in anchor pockets
Mooring Lines 2x 80 m mooring rope, MBL 29 mt
Tugger Winches 2 x 12 mt @15.5 m/ min, 200 m x 32 mm diameter wire
Capstan 2 x 10 mt @ 0-19 m/min, light speed, @ 23 m/min, variable
speed control

DYNMAIC POSITIONING
Type Konsberg, IMO Class DP2
See our detailed listing for complete Specifications

TANK CAPACITIES
Ship’s Fuel Oil 293 m3
Fuel oil Cargo 982 m3
Potable Water 1,383 m3
WB/WD 862 m3
Mud 1,396.4 m3
Dry Bulk 379.8 m3 (7 x 54.3 m3)
Brine 449.7 m3
Base Oil 159.2 m3
ORO 1,106 m3
Lube/Hyd. Oil 13 m3, 6.2 m3
Sewage 13.5 m3
Bilge 13.5 m3

DECK CAPACITIES
Deck Cargo Area 982 m2 (57.8 m x 16.0 m)
Deck Cargo 1,940 mt @ 1 m VCG
Cargo Deck Load 5.0 mt/m2
ROV Deck 200 m2 (10.5 m x 19.0 m)
ROV Deck Load 3.0 mt
ROV Cargo 600 mt @ 1.0 m VCG
ROV Power 1,000 kW DB’s 44/3/60

DISCHARGE RATES
See our detailed listing for Discharge Rates

LIFE SAVING/RESCUE/POLLUTION CONTROL
MOB Boat 1 x 6 Person
Life Raft & Davit Yes
Oil Recovery 1,106 m3
Slop Tanks 92 m3
Oil Recovery Oil-Rec Notation, Recovery and dispersant booms, skimmers
and pumps can be provided
Fire Fighting Foam Fire Fighting System for helideck, sprinkler system, fixed
Co2 System

NAVIGATION/COMMUNICATION
See our detailed listing for full NAV/COM equipment list

ACCOMMODATIONS
1 Berth Cabins 12
2 berth Cabins 24
Berths 60
Hospital 1
Recreation/Movie 3
Office 4
Conference 1
Gym 1

Disclaimer:

The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
