COMMENTS

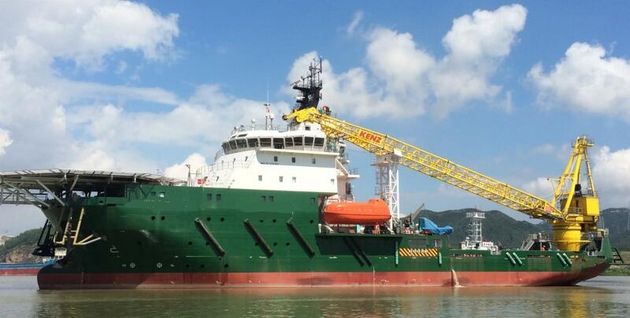

This is a 289’ DP2 Offshore Construction Vessel built in China in 2015. It is ABS Class with FiFi II, Moon Pool, 100-ton man riding deck crane, helideck and accommodations for 238 including crew. Propulsion is diesel-electric driving Azimuth units.

GENERAL INFORMATION
Type Offshore Construction Vessel (Diesel-Electric)
Built 2015, Pax Ocean Engineering, Zhuhai, China
Flag Singapore
Class ABS +A1(E), DPS-2, SPS, FFV2

DIMENSIONS
Length Overall 88.0 m/288 ft 10 in
Beam 20.0 m/65 ft 7 in
Depth 8.0 m/26 ft 3 in
Draft (Design) 6.0 m/19 ft 8 in
Draft (Minimum) 4.6 m/15 ft 1 in
Deadweight 3,200 mt
GT 5,552 mt
NT 1,627 mt
Deck Area 760 m² (main)
Deck Load 10 t/m²

TANK & PUMP CAPACITY
Fuel Oil Approx 1,500 m3
Potable Water Approx 1,000 m3
Drill/Ballast Water Approx 2,000 m3
Sewage Holding Approx. 50 m3
Dirty Oil Approx. 15 m3
Bilge Appox.30 m3
F W Cargo Pump 1 x 1,000 m3/hr @ 9 bar
FO Transfer Pump 1 x 60 m3/hr @ 9 bar

MACHINERY
Main Propulsion 2 x Azimuth Prolellers @ 1,850 KW each driven by electric
motor with frequency converter
Generators 2 x Hyundai Himsen Diesel Engines driving 2 x 1,881 KW
alternators (690 V/3 ph/60 hz) Fuel is MDO
Emergency Gen. 1 x 300 KW emergency/harbor generator (440 V/3 ph/60 hz)
Tunnel Thrusters 2 x transverse tunnel bow thrusters each 1000kW
Air compressor 2 x Serv ice Air Compressor Capacity 300m3/hr at 10 bar
(1320 gpm @ 145psi)
Max Speed 13 knots (min draft)

Main Crane Kenz Electric Hydraulic Lattice Boom crane,100T@14m with
man-riding capability , boom length 46m,
Auxiliary Crane 10T@15m radius
Mooring Winch 4 drums hydraulic winches each with 1200m x 44mm wire
Anchors 4 x 7,000kg Flipper Delta Anchors
Capstans 2 x electro hydraulic Cap. 10T@15m/min
Reefer Points 4 x 440V, 4 x 230V

Helideck Suitable for Sikorsky S92N Helicopter
Moon Pool 4m x 4m
Heel Control 2 x 350 m3/hr heeling pumps with heeling monitoring system

Dynamic Position Kongsberg K-POS DP-21, 2 x DGPS
1 x Radius Relative Positioning Sy stem
1 x Cyscan Laser Reference System

ACCOMMODATIONS
Crew up to 38 (including catering crew)
Add'l Personnel 200
Total Berths 238

Cabins
One Man 8
Two Man 13
Four Man 51
Total 72
Cabin sizes in compliance to MLC 2006

Spaces/Equipment
Mess Room for 90 pax
Recreation Rooms 2
TV 1 x room with 38 cinema type seats
Smoking Room 1
Offices 3 x well equipped off ices
Conference Room 1
Gymnasium 1 x equipped with 2 motorized treadmills, 1 cycling machine
2 Elliptical Cross Trainer & 1 multiple station
Laundry 1 x with 5 sets of heavy-duty industrial washing machines &
dryers
Prayer Room 1 x with ablution facility
Hospital 1 x with 3 medical beds, movable with lockable wheels
Changing Room 1 x with 240 individual lockers
Freezer 1 x 23m3 Storage
Chiller 1 x 26m3 Storage
Water Maker 2 x 50 m3
Sewage Treatment 1 x MARPOL Biological Sewage Treatment Plant of 240 men capacity

FIRE FIGHTING & SAFETY EQUIPMENT
Fi-Fi (Class II) 2 x FiFi pumps each capacity 3,700m3/hr@140m
4 x Remote Controlled FiFi monitors each capacity 1,800m3/hr
Compliance to latest amended SOLAS 1974 and SPS Code
2008
Life Boats 2 x SOLAS certified Life Boats c/w launching davits
Rescue Boats 2 x SOLAS certified 6-men Rescue Boats c/w launching davits
