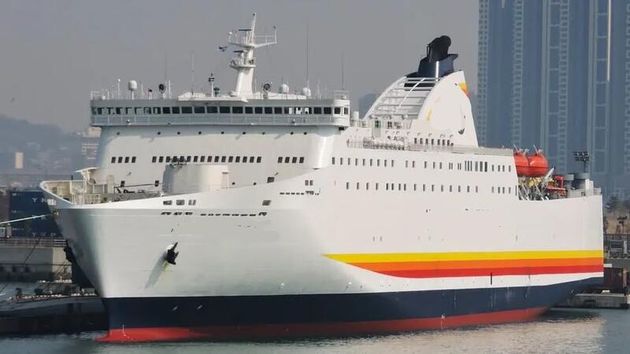

This is a 642’ Fast RoPax Night Ferry built in Japan in 1997. It is KR/CCS dual Class. The ship has a service speed of 25.0 knots and a max speed of 27.5 knots. It carries 600 passengers plus crew in a variety of cabin classes. There 2,202 lane meters and it can carry up to 325 TEU containers. There are3 ramps, a bow ramp, a stern ramp and a stern quarter ramp for flexibility and speed of loading and unloading. The ship is available for handover 4th quarter 2026.

GENERAL INFORMATION
Vessel Type RORO Passenger Ship / Car Ferry / Cargo & Container
Carrier
Flag Panama
Class KR (Dual Class with CCS)
Next Special Survey 2028
Built February 1997
Builder MHI Shimonoseki Shipyard, Japan

DIMENSIONS
LOA 195.95 m/642 ft 11 in
LBP 184.17 m/604 ft 3 in
Beam 27.00 m/88 ft 7 in
Draft 6.70 m/22.0 ft
GRT 28,554 mt
NRT 8,866 mt
DWT 6,203 mt
Passenger Capacity 600
Crew 60
Total 660

MACHINERY
Main Engines 2 x NKK-SEMT PIELSTICK 14PC 4-2V @ 22,712 HP
each
Total Power 45,424 HP
Auxiliary Engines 3 x Daihatsu LO2-284
3 x 1,537 KVA Generators x 450 V, 60 hz
Shaft Generator 2 x 1,562 KVA x 450 V 60 hz
Emergency Generator 1 x 6V-92 YA 360 HP, 200 KVA & 1,800 rpm
Speed Maximum 27.5 kts
Speed Service 25.0 kts
Bow Thrusters 2 x 1,446 HP
Stern Thruster 1 x 1,446 HP
Stabilizers 2-ZR-SS 3,600 mm x 1,800 mm
Propulsion 2 x CPP Propellers 4-Blade
Boiler 1 x MUIRA VWN 4000-E

CARGO CAPACITY
TEU Containers 325
Lane Meters D Deck: 952 LM, E Deck: 992 LM, F Deck: 252 LM
2,202 Total Lane Meters:
Ramps 1 x Bow
1 x Stern
1 x Stern Quarter

TANK CAPACITY
Fuel Oil 1,119 m3
Diesel Oil 166 m3
Lube Oil 177 m3
Fresh Water 1,101 m3
Water Ballast 4,794 m3

FIRE FIGHTING EQUIPMENT
Passenger & Crew Areas Auto Sprinkler System
Cargo Hold Areas Water Spray System
Engine/Machinery Areas Water Mist & Co2 Systems

LIFESAVING EQUIPMENT
Lifeboats 4 x 55 person
Life Rafts 28 x 25 person
Fast Rescue Boat 1 x 6 person
Rescue Chutes 2 @ 18 person
